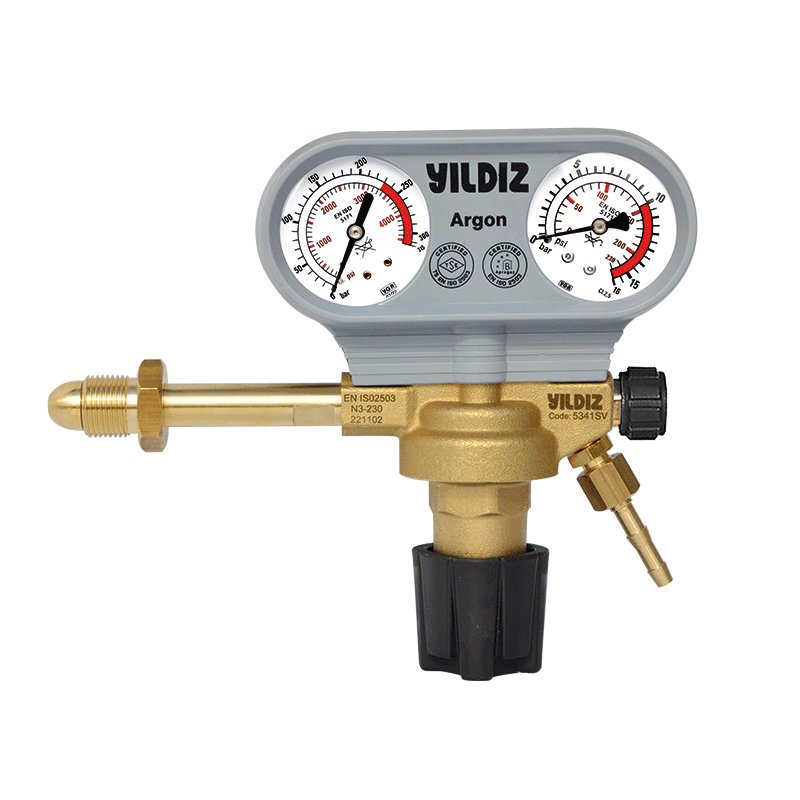

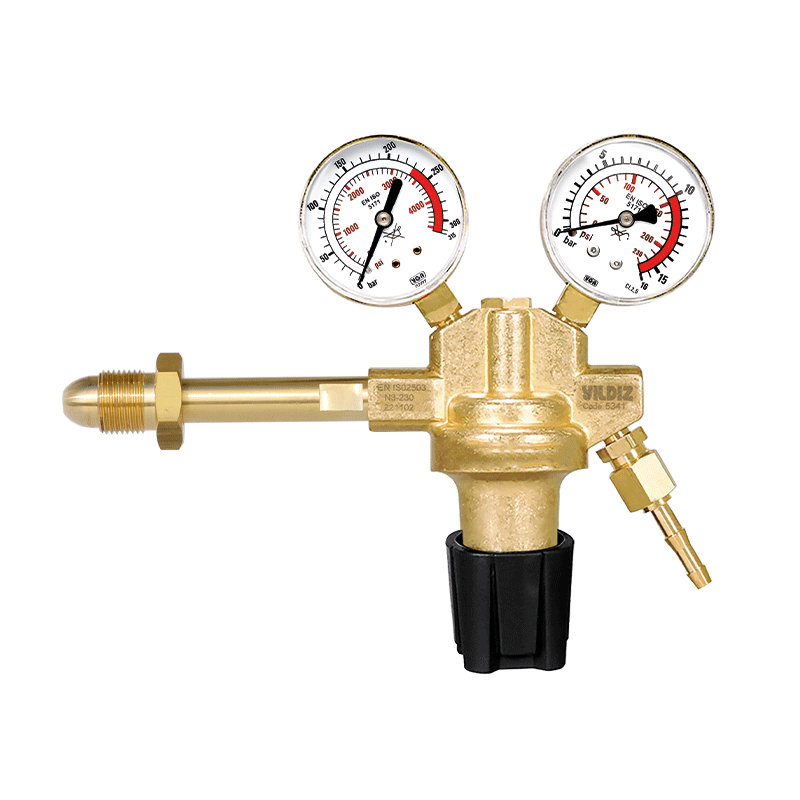

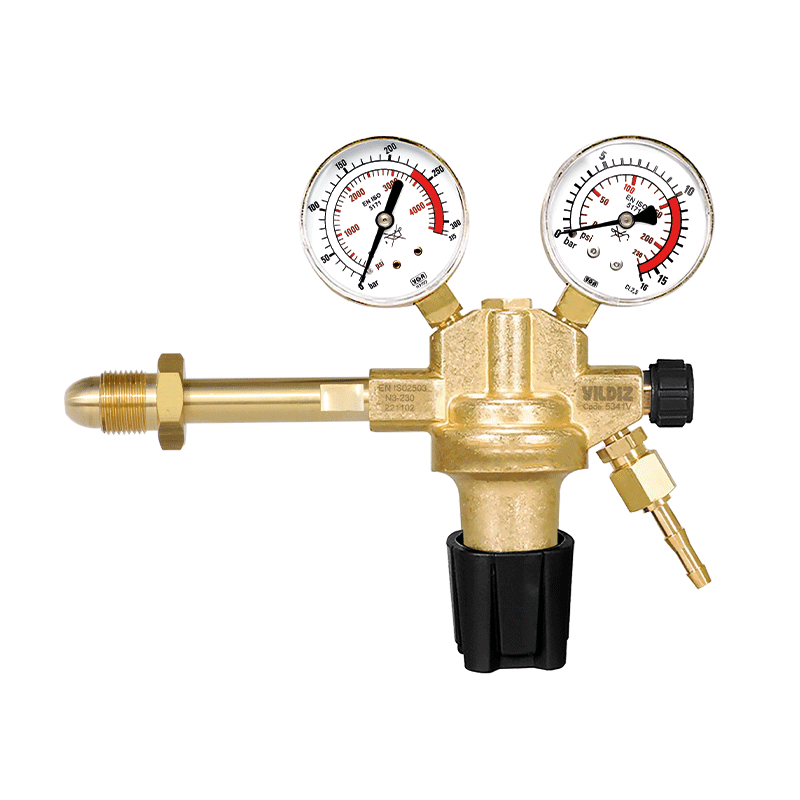

Technical Specifications
*For TIG, MIG/MAG, plasma welding, plasma cutting, and shielding gas applications
*Compliance with EN ISO 2503 standard (TSE, APRAGAZ)
*Easy readability with colored Ø63 mm gauges compliant with EN ISO 5171 standard
*Stainless steel filter that extends product life
*Patented design with high-protection gauge guard
*Color-coded safety design indicating gas type
*Enhanced safety relief valve system
*Flow gauge design
*Connection nut suitable for Ø4 and Ø6 mm hoses
*Operating temperature (-20°C / +60°C)
*Forged brass body and cover design
*It is recommended to use with mixed gas pressure reducers and heaters.
