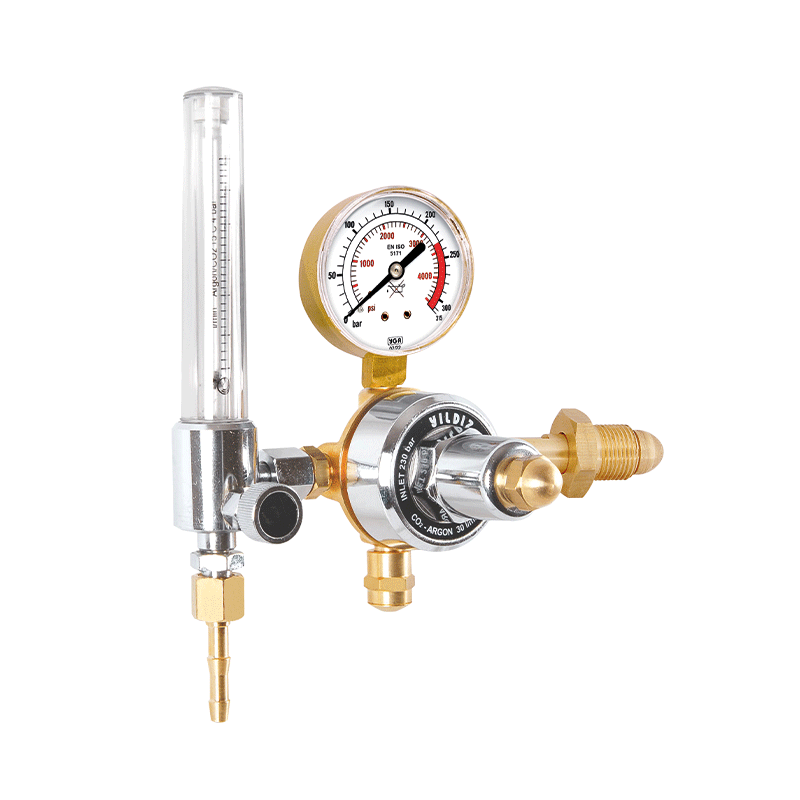

Argon Pressure Regulator with Flowmeter and Safety
Argon Pressure Regulator with Flowmeter and Safety
Code No: 5440SF16
Pressure Regulator
| Gas Inlet Pressure | :0-230 Bar / 0-300 Bar |
| Gas Outlet Flow | :0-16 L/Min |
| Working Standard | :EN ISO 2503 |
| Inlet\Outlet Connection | :The Cylinder Connection is Made In Accordance with Each Country and Standard |
Technical Specifications
*Applications in TIG, MIG/MAG, plasma welding, plasma cutting and shielding gas
*Complies with EN ISO 2503 standard (TSE, APRAGAZ)
*Easy readability with EN ISO 5171 compliant colored Ø63 mm gauges
*Stainless steel filter extends product lifespan
*Patented design with high-protection gauge housing
*Colored protection design indicating gas types
*Enhanced safety fuse system
*Flowmeter design with advanced pin system for precise flow adjustment
*Connection fitting suitable for Ø4 and Ø6 mm hoses
*Operating temperature (-20°C / +60°C)
*Forged brass body and chrome-plated cover design
*Use with heaters is recommended for mixed gas regulators
