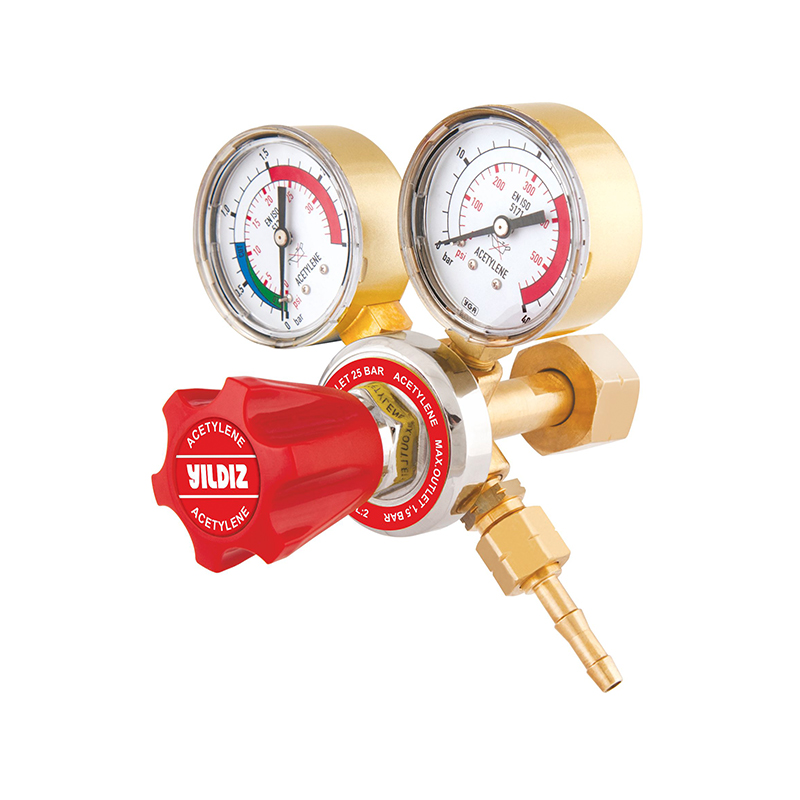

Acetylene Pressure Regulator With Safety
Acetylene Pressure Regulator With Safety
Code No: 5711S
Pressure Regulator Acetylene - With Protection
| Gas Inlet Pressure | :0-25 bar |
| Gas Outlet Pressure | :0-1,5 bar |
| Gas Flow (p2=10 bar) | :5 m3/h |
| Inlet/Outlet Connection | :The Cylinder Connection is Made In Accordance with Each Country and Standard |
Technical Specifications
*For cutting, heating, welding, and industrial gas applications
*Complies with EN ISO 2503 standard (TSE)
*Easy readability with Ø63 mm color-coded gauges according to EN ISO 5171 standard
*Stainless steel filter extends product life
*High protection with gauge housing
*Single color-coded gauge housing specific to gas type
*Connection nipple suitable for Ø6 and Ø8 mm hoses
*Operating temperature (-20°C / +60°C)
*Rear entry connection
*Chrome-plated cover and brass body design
Pressure Regulator - Correct Usage and Installation Guide
