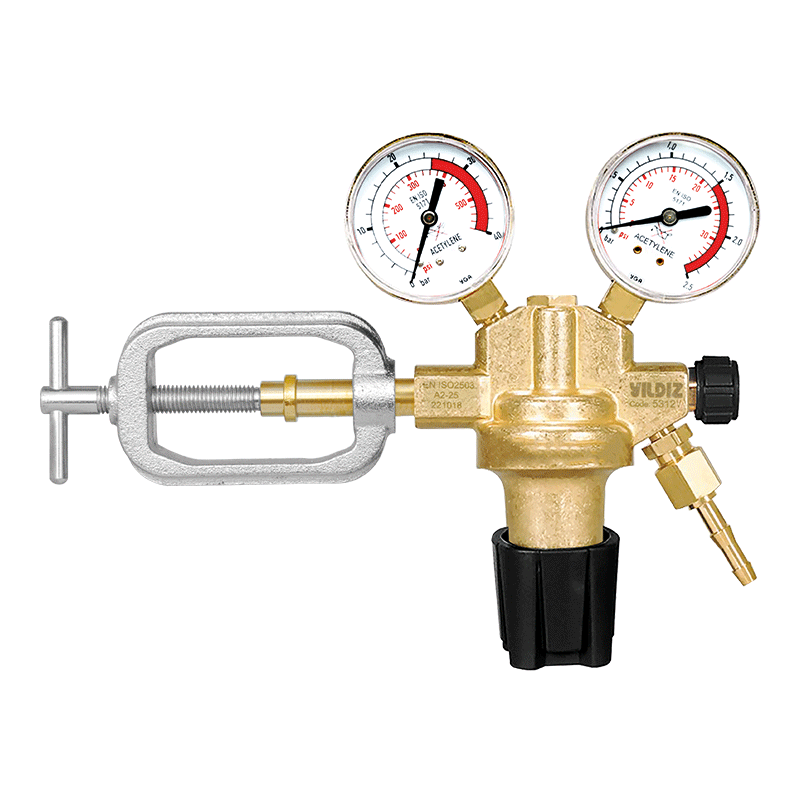

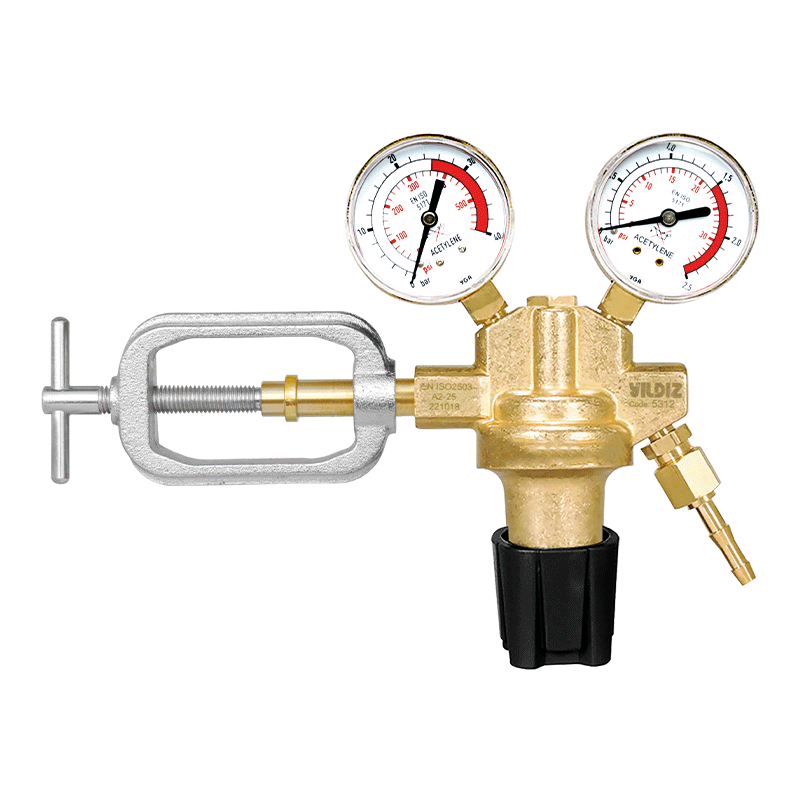

Acetylene Pressure Regulator with Clamp and Safety
Acetylene Pressure Regulator with Clamp and Safety
Code No: 5312S
Pressure Regulator
| Gas Inlet Pressure | :0-25 Bar |
| Gas Outlet Pressure | :0-1,5 Bar |
| Working Standard | :EN ISO 2503 |
| Inlet/Outlet Connection | :The Cylinder Connection is Made In Accordance with Each Country and Standard |
Technical Specifications
*For cutting, heating, welding, and industrial gas applications
*Compliance with EN ISO 2503 standard (TSE, APRAGAZ)
*Easy readability with colored Ø63 mm gauges compliant with EN ISO 5171 standard
*Stainless steel filter that extends product life

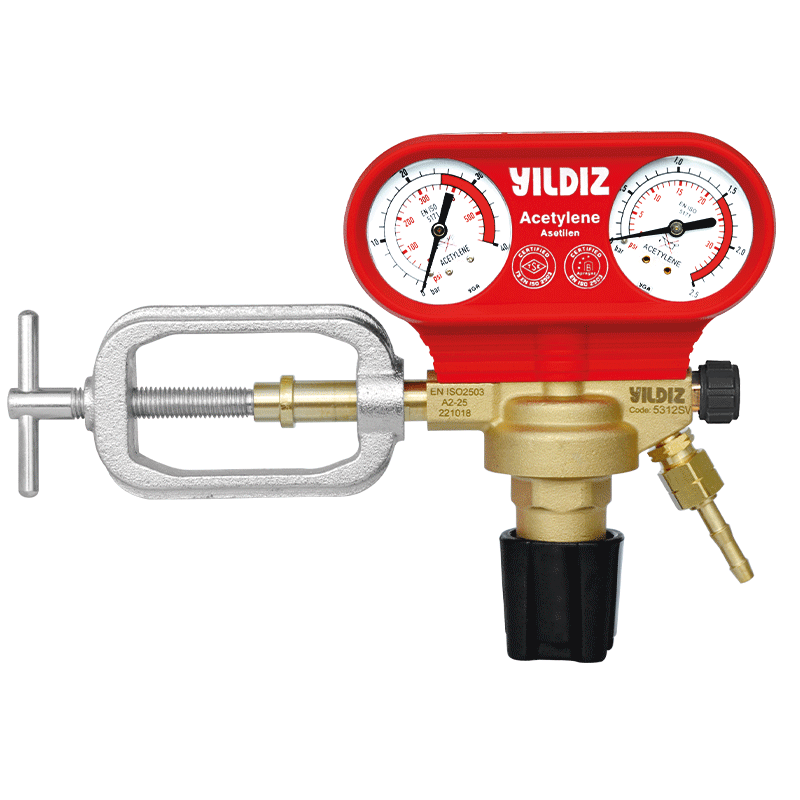

*Patented design with high-protection gauge guard
*Color-coded safety design indicating gas type
*Connection nut suitable for Ø6 and Ø8 mm hoses
*Operating temperature (-20°C / +60°C)
*Forged brass body and cover design
Pressure Regulator - Correct Usage and Installation Guide
